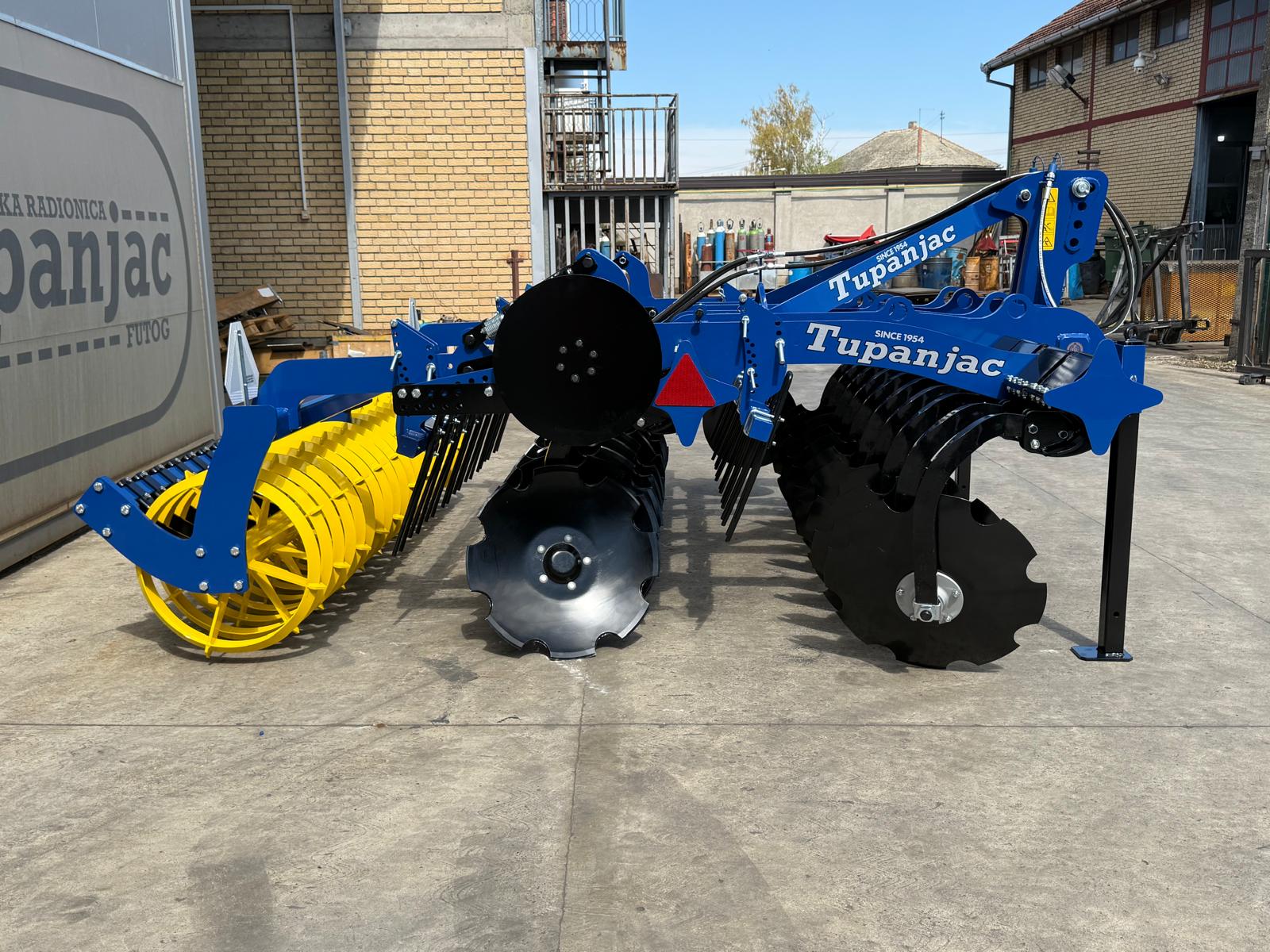

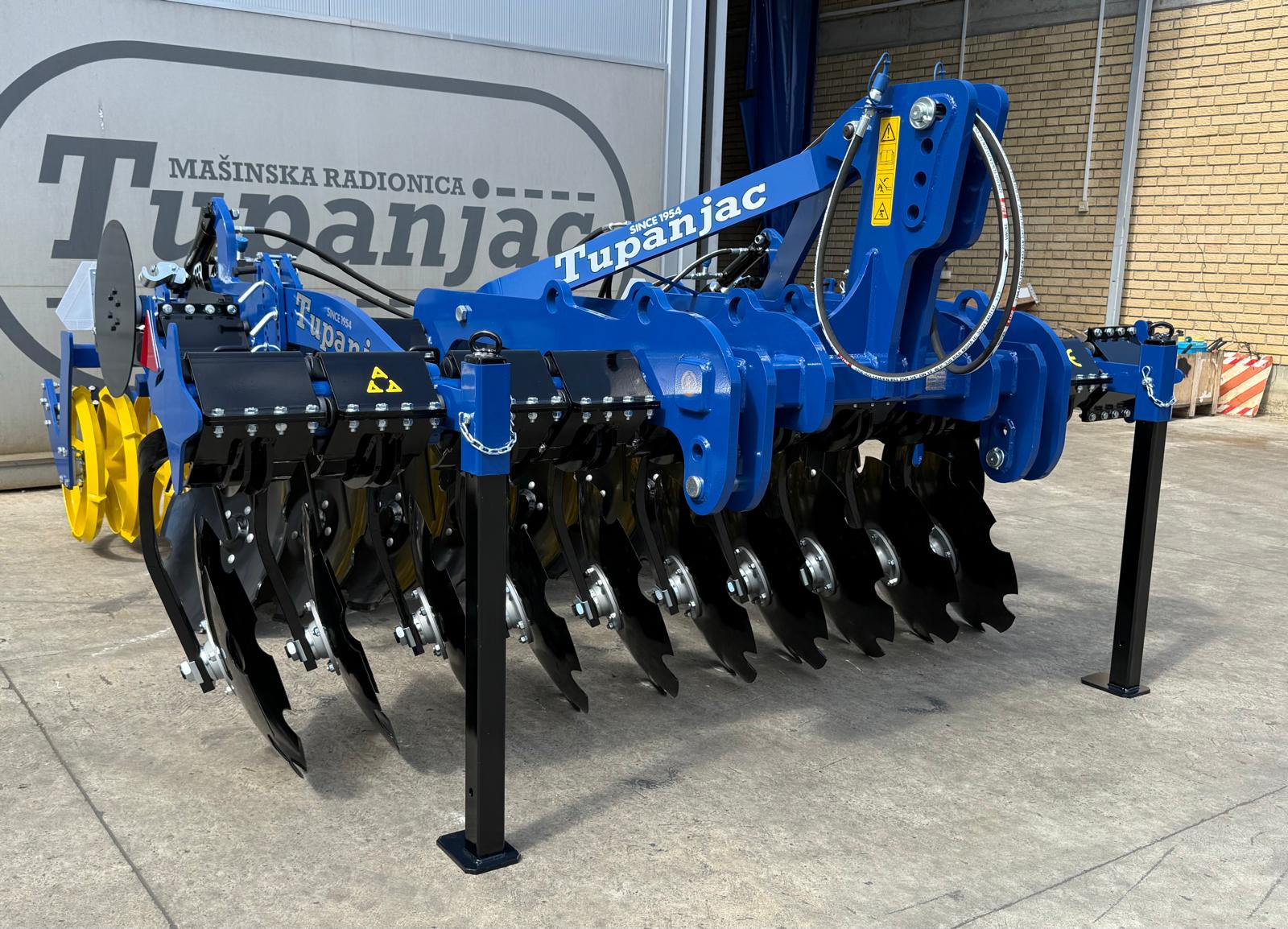

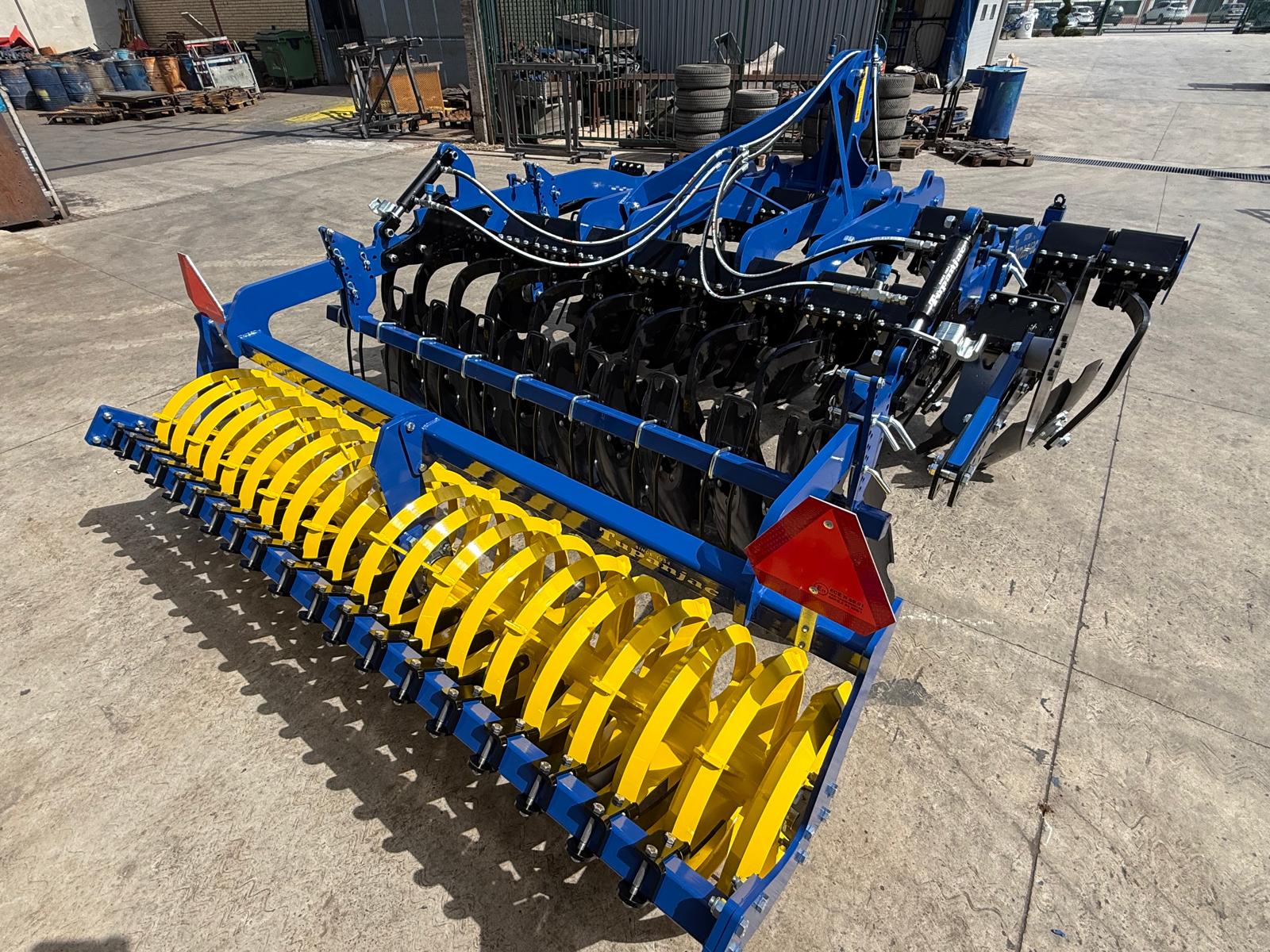

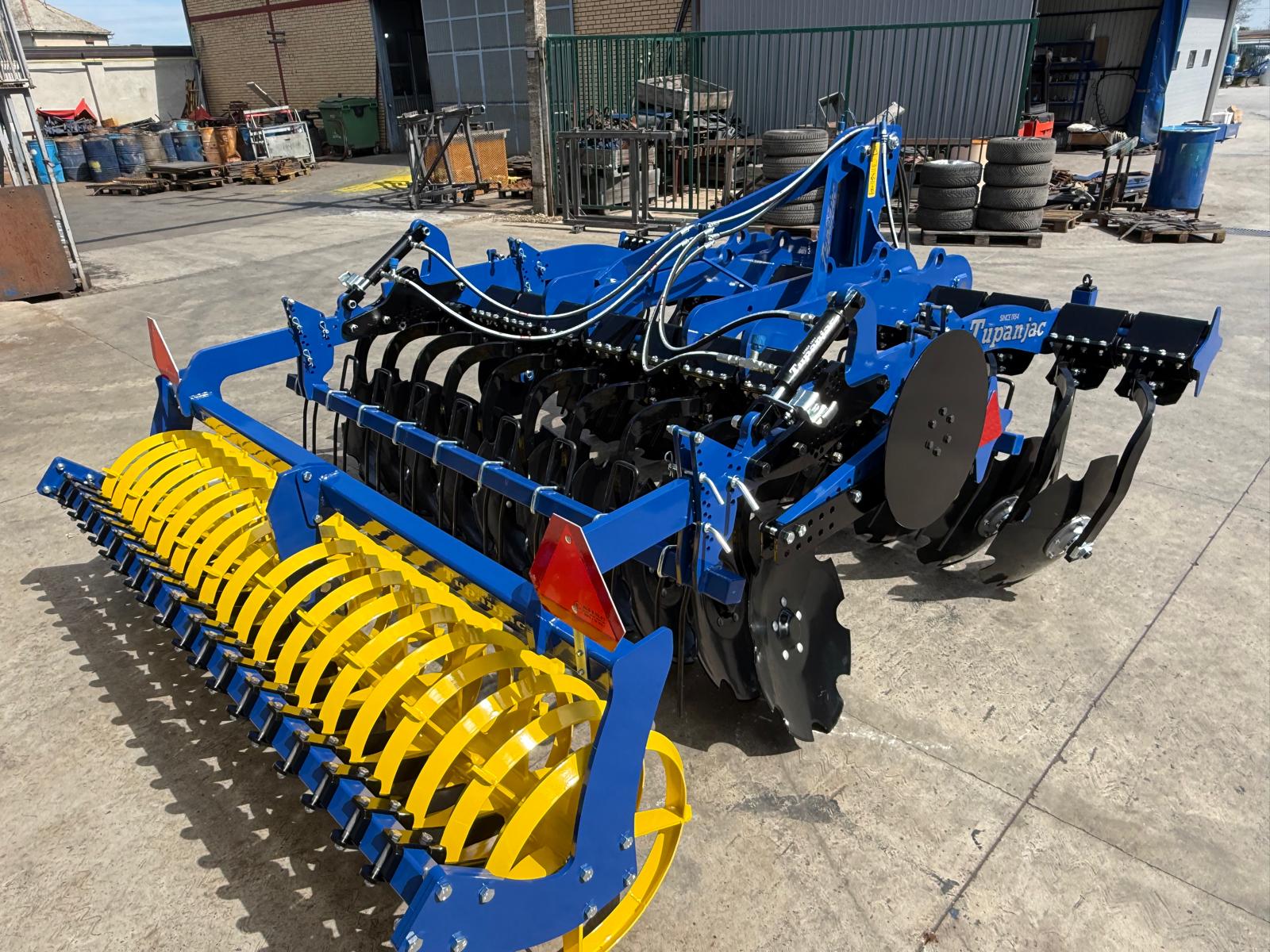

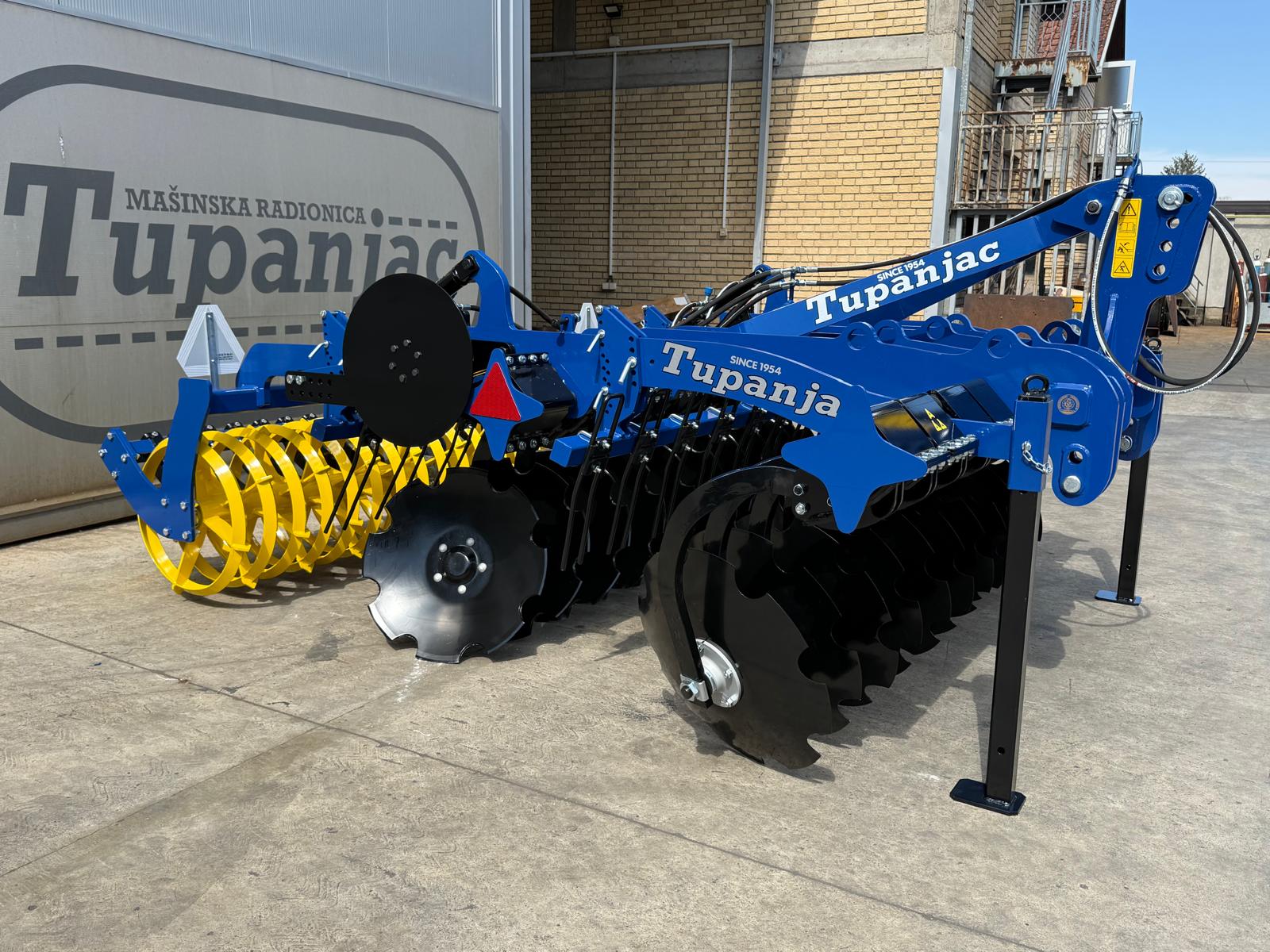

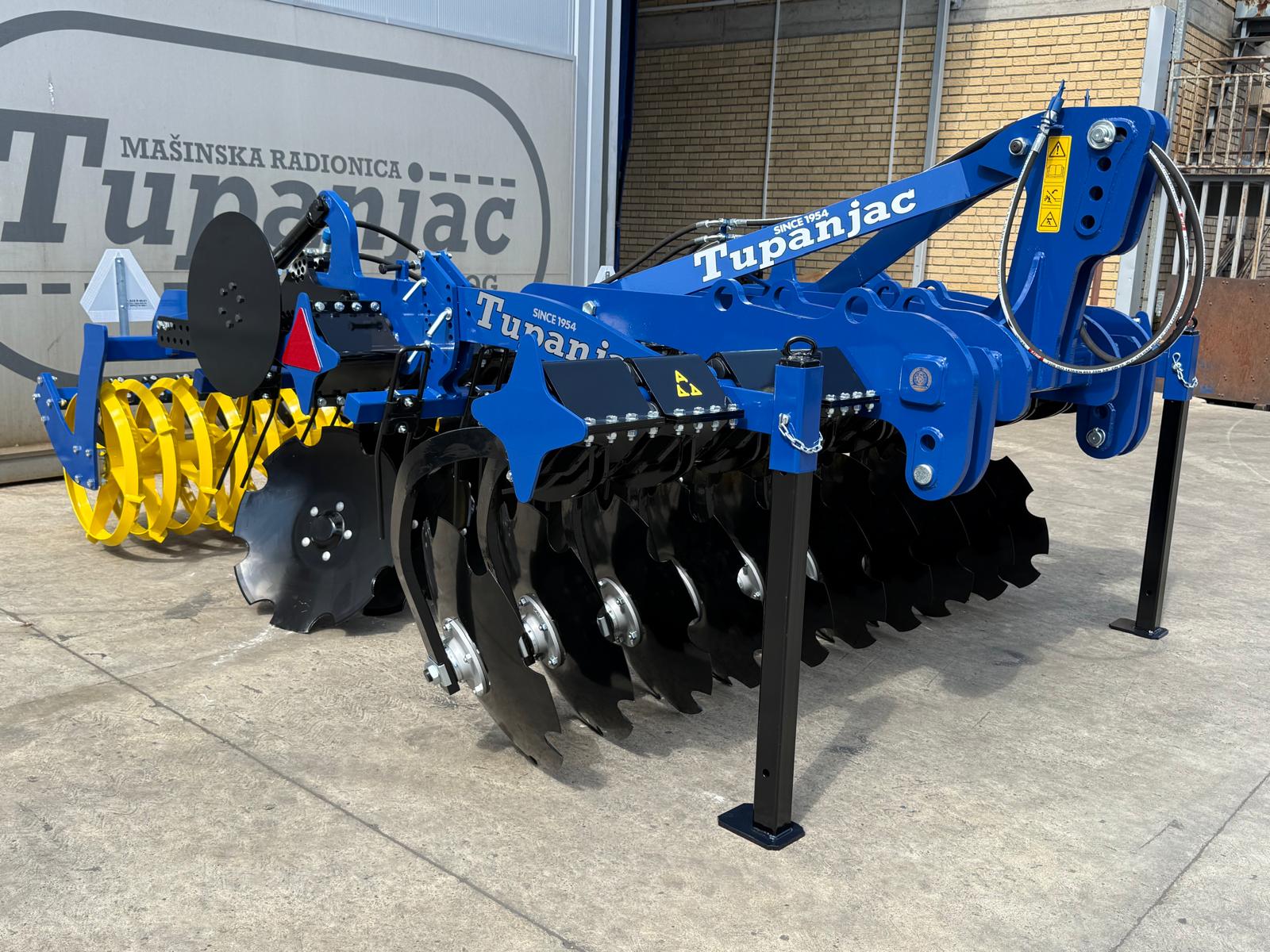

Mounted disc harrow 2.5 m is designed for soil cultivation and residue incorporation after harvest. Its strong mounted construction, discs and roller provide effective residue cutting, soil crumbling and preparation for further field operations.

Technical specifications
  • Number of discs: 20
  • Minimum tractor power: 120 HP
  • Tractor hitch category: III
  • Working width: 250 cm
  • Roller type: V-ring
  • Roller diameter: 600 mm
  • Disc diameter: 625 mm, lifetime breakage warranty
  • Bearing type: Sealed, maintenance-free
  • Frame construction: 100x100x10 mm
  • Transport width: 250 cm
  • Working speed: 10-17 km/h
  • Working depth: 0-20 cm
  • Approximate machine weight: 2200 kg
