Mounted disc harrow 4 m hydraulically folding
Mounted disc harrow 4 m hydraulically folding
Mounted disc harrow 4 m hydraulically folding
Mounted disc harrow 4 m hydraulically folding
Mounted disc harrow 4 m hydraulically folding
Mounted disc harrow 4 m hydraulically folding
Mounted disc harrow 4 m hydraulically folding
Mounted disc harrow 4 m hydraulically folding
Mounted disc harrow 4 m hydraulically folding
Mounted disc harrow 4 m hydraulically folding

Mounted disc harrow 4 m hydraulically folding

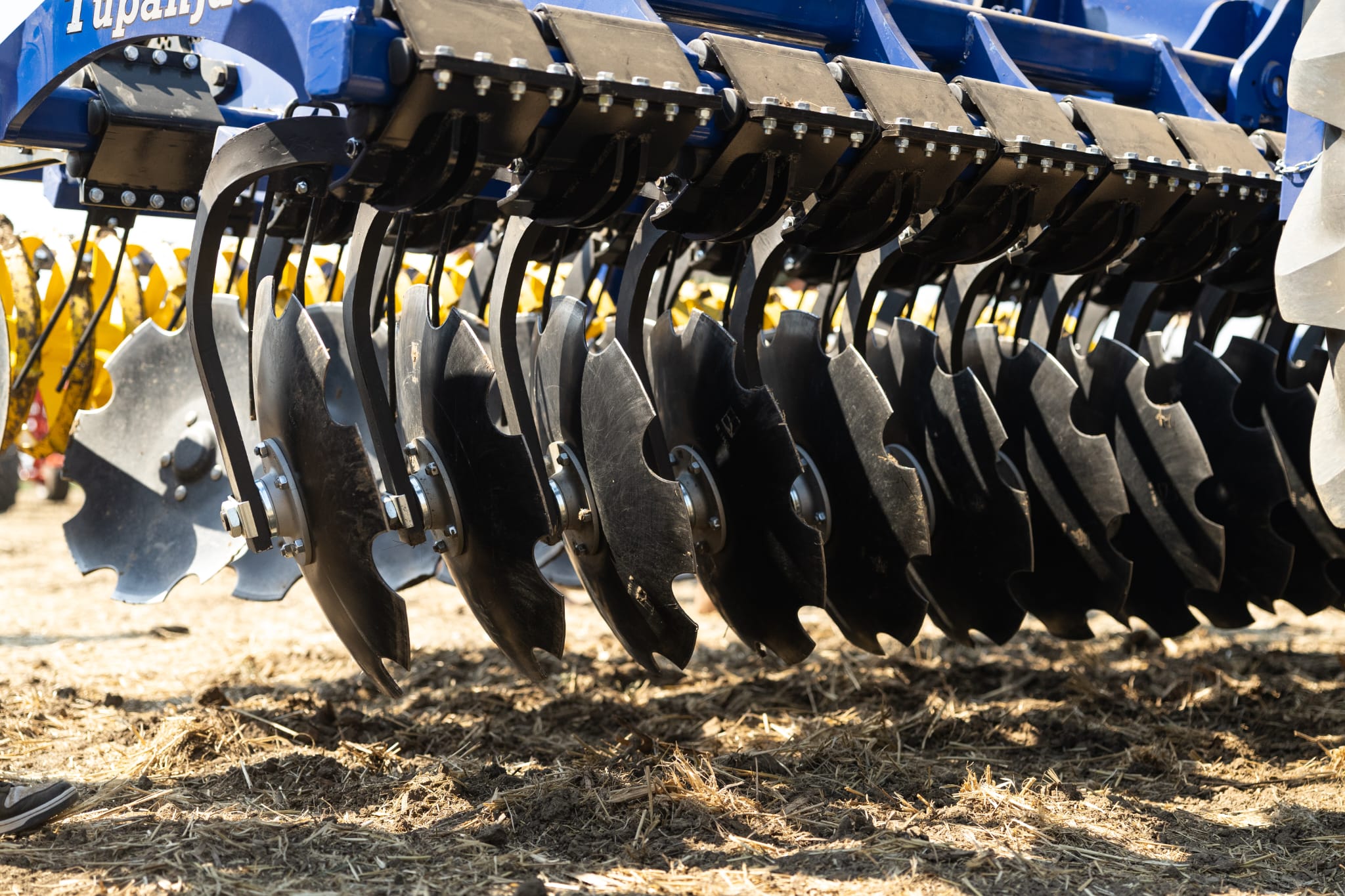

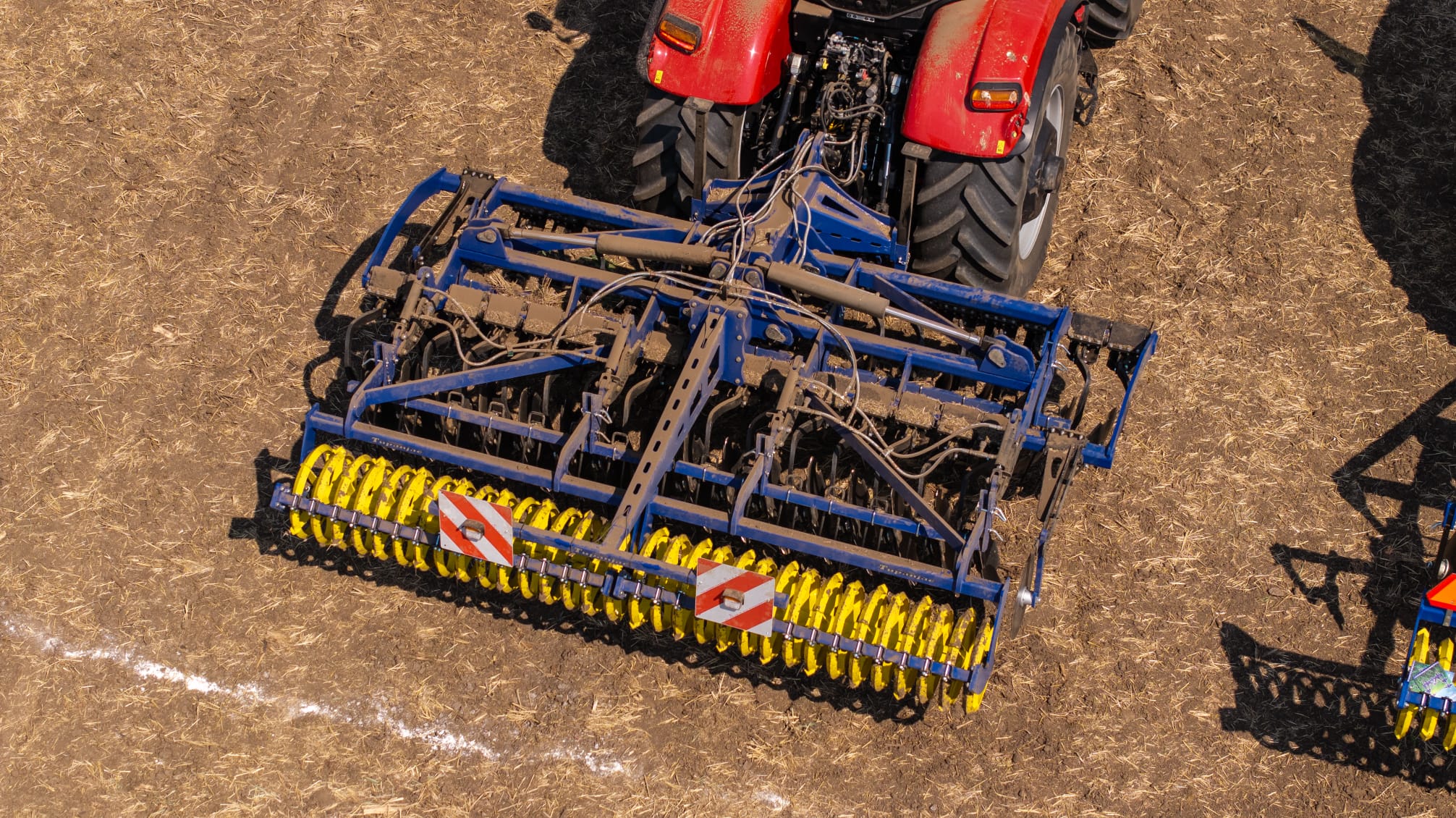

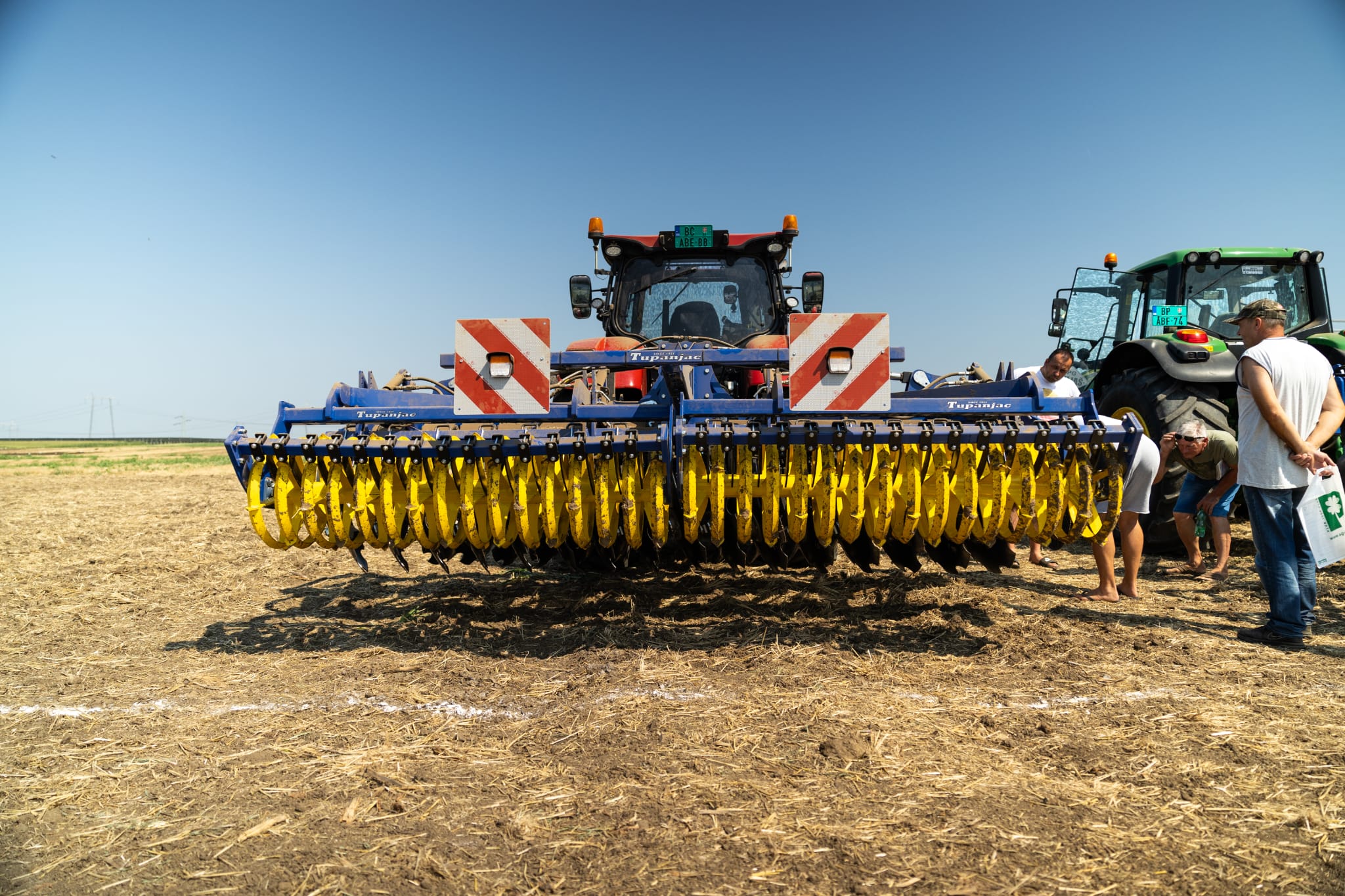

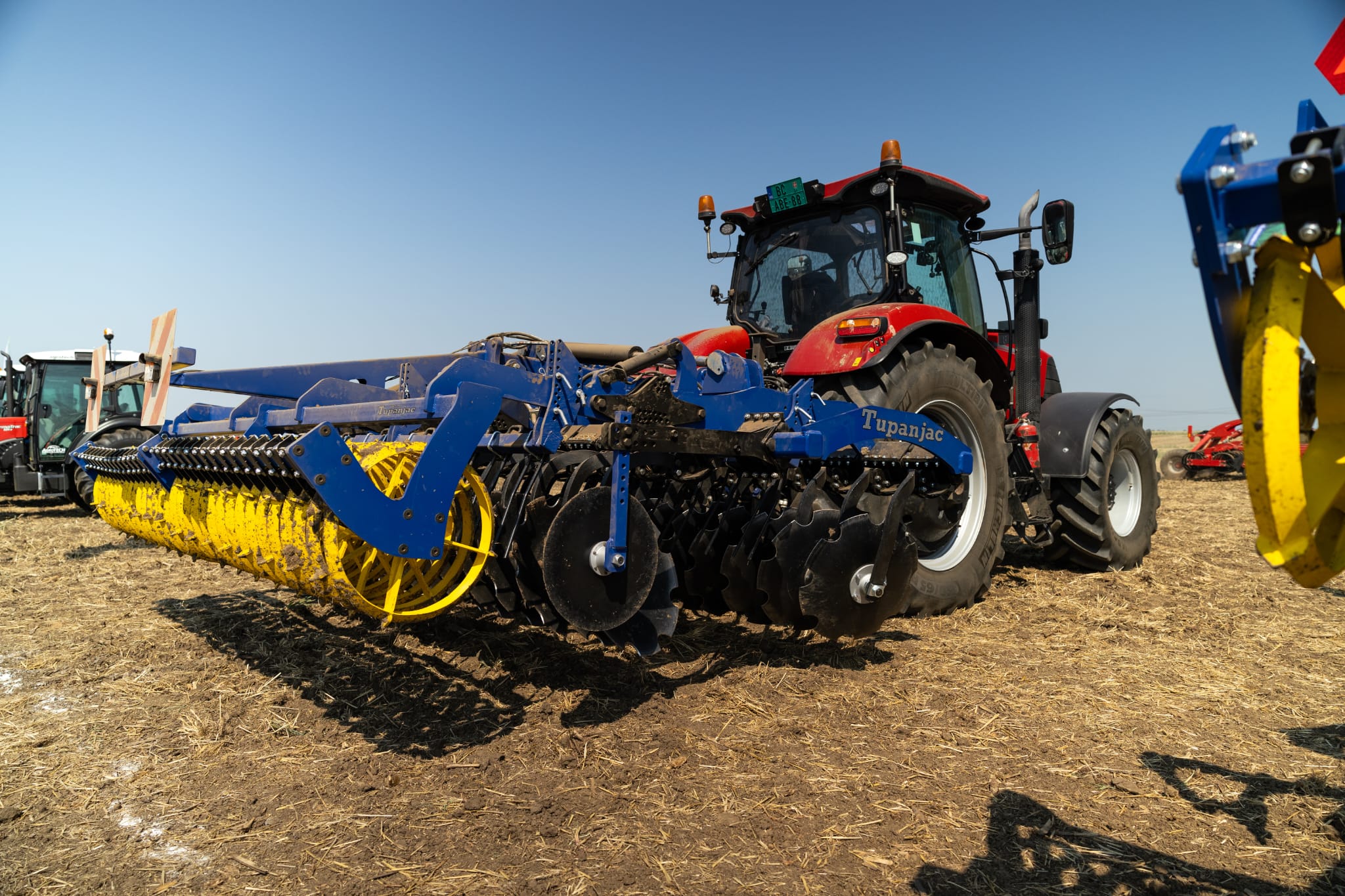

Mounted disc harrow 4 m hydraulically folding is designed for soil cultivation and residue incorporation after harvest. Its strong mounted construction, discs and roller provide effective residue cutting, soil crumbling and preparation for further field operations. The hydraulic folding system allows easier transport and handling.

Technical specifications
  • Number of discs: 32
  • Minimum tractor power: 190 HP
  • Tractor hitch category: III
  • Working width: 400 cm
  • Roller type: V-ring
  • Roller diameter: 600 mm
  • Disc diameter: 625 mm, lifetime breakage warranty
  • Bearing type: Sealed, maintenance-free
  • Frame construction: 100x100x10 mm
  • Transport width: 400 cm
  • Working speed: 10-17 km/h
  • Working depth: 0-20 cm
  • Approximate machine weight: 3400 kg
